    CAT7 4-PAIR FTP 23AWG

    Network Cable / CAT7

    CAT7 4-PAIR FTP 23AWG - Product View

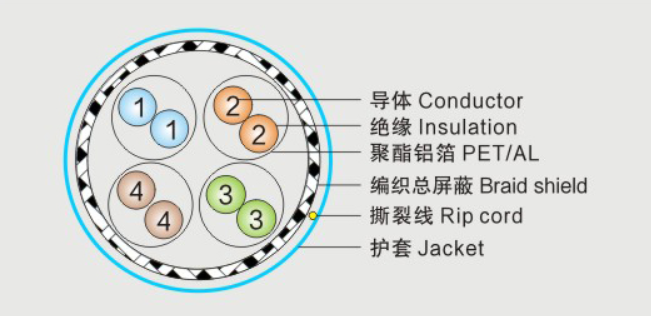

    CAT7 4-PAIR FTP 23AWG - Technical Diagram

    Technical Specifications

    Full Specs
    Conductor
    Bare solid copper
    Insulation
    Foamed PE
    Individual Shield
    PET/AL
    Drain wire
    7×0.2TC
    Overall Shield
    TC Braid
    Rip cord
    (optional)
    Jacket
    Lead free PVC or LSOH
    Flammability grade
    CMX, CM, CMG, CMR
    Rated temperature
    60°C, 75°C
    Reference standard
    UL1581, UL444, IEC61156-5

    Standards & Certifications

    This product is manufactured to meet the following North American and international standards:

    UL1581UL444IEC61156-5
