    CAT6 4-PAIR UTP 23AWG

    Network Cable / CAT6UTP

    CAT6 4-PAIR UTP 23AWG - Product View

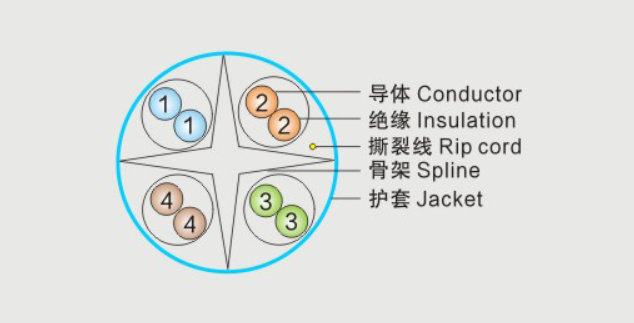

    CAT6 4-PAIR UTP 23AWG - Technical Diagram

    Technical Specifications

    Full Specs
    Conductor
    Bare solid copper
    Insulation
    Solid high-density PE
    Separator
    Polyethylene (PE)
    Rip cord
    (optional)
    Jacket
    Lead free PVC or LSOH
    Flammability grade
    CMX, CM, CMG, CMR
    Rated temperature
    60°C, 75°C
    Reference standard
    UL1581, UL444, ANSI/TIA-568-C.2

    Standards & Certifications

    This product is manufactured to meet the following North American and international standards:

    UL1581UL444ANSI/TIA-568-C.2
